Load Bank/Output Docking Stations

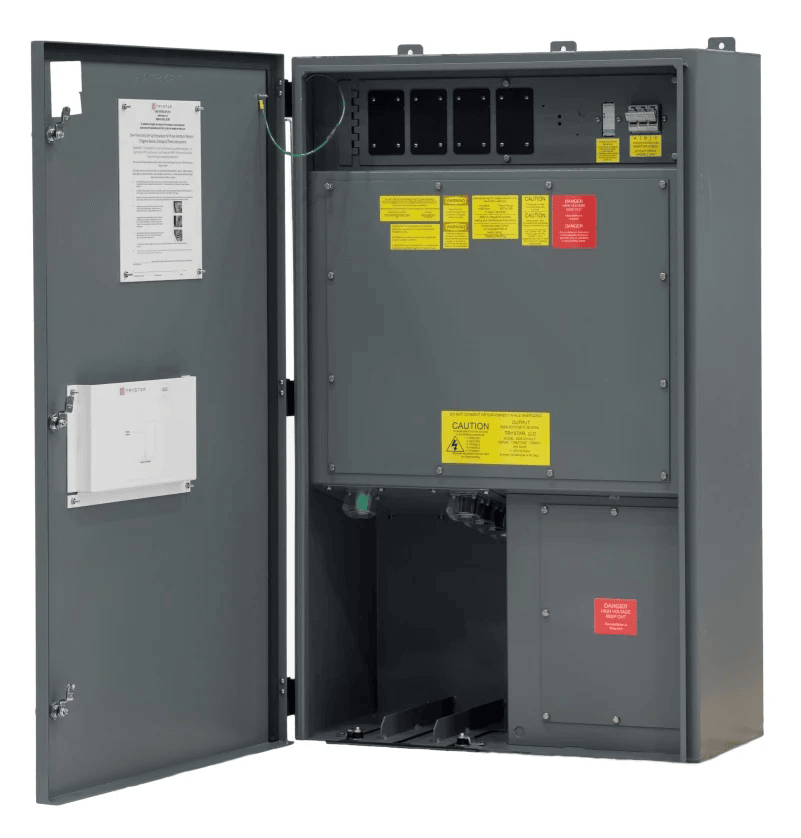

The Load Bank Docking Station provides a safe, efficient, and code-compliant solution for testing and maintaining permanent generators and critical power systems. By offering a standardized connection point, it eliminates the need for complex wiring setups, allowing load banks to be connected quickly and securely for routine or emergency testing.

Regular load testing is vital to verify generator performance, confirm capacity, and identify potential issues before they become failures. With integrated safety interlocks, grounding provisions, and tamper-resistant construction, these docking stations ensure testing can be conducted safely while protecting technicians and equipment.

Engineered for industries with stringent regulatory requirements—including healthcare, utilities, telecom, and data centers—these stations support real-world load simulation to maintain compliance, operational readiness, and peace of mind. Built with durable materials and universal compatibility, the Load Bank Docking Station is an essential tool for facilities that depend on reliable backup power.

Specifications

• Ampacity: 100A – 5000A
• Voltage Options: Up to 600V
• Frequency: 50 / 60Hz
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity Rating: 5% – 95% RH (non-condensing)
• Codes/Standards: ETL, UL 1008, UL 50
• Enclosure Types: NEMA 3R (powder-coated aluminum) NEMA 4X (304 or 316 stainless steel)
• Bus Bar: Silver-plated copper / Tin-plated copper (for wastewater facilities)
• Enclosure Dimensions (H × W × D):
  Padmount Options:
  – Dual Padmount: 84” × 96.5” × 43”
  – Deluxe Padmount: 90” × 78.5” × 43”
  – Padmount Extra Depth: 84” × 48” × 61”
  – Padmount: 84” × 48” × 43”Wall-Mount Options:
  – Large: 60” × 48” × 19.5” – Medium: 54” × 40” × 16.5”
  – Small: 48” × 30” × 16.5”

  Flange-Mount Options:
  – Large: 78” × 52” × 21.3”
  – Medium: 70” × 44” × 18.3”
  – Small: 64” × 34” × 18.3”

• Notes: Dimensions may vary depending on application or specifications. One-line drawings available upon request.
