Dual Purpose Docking Stations

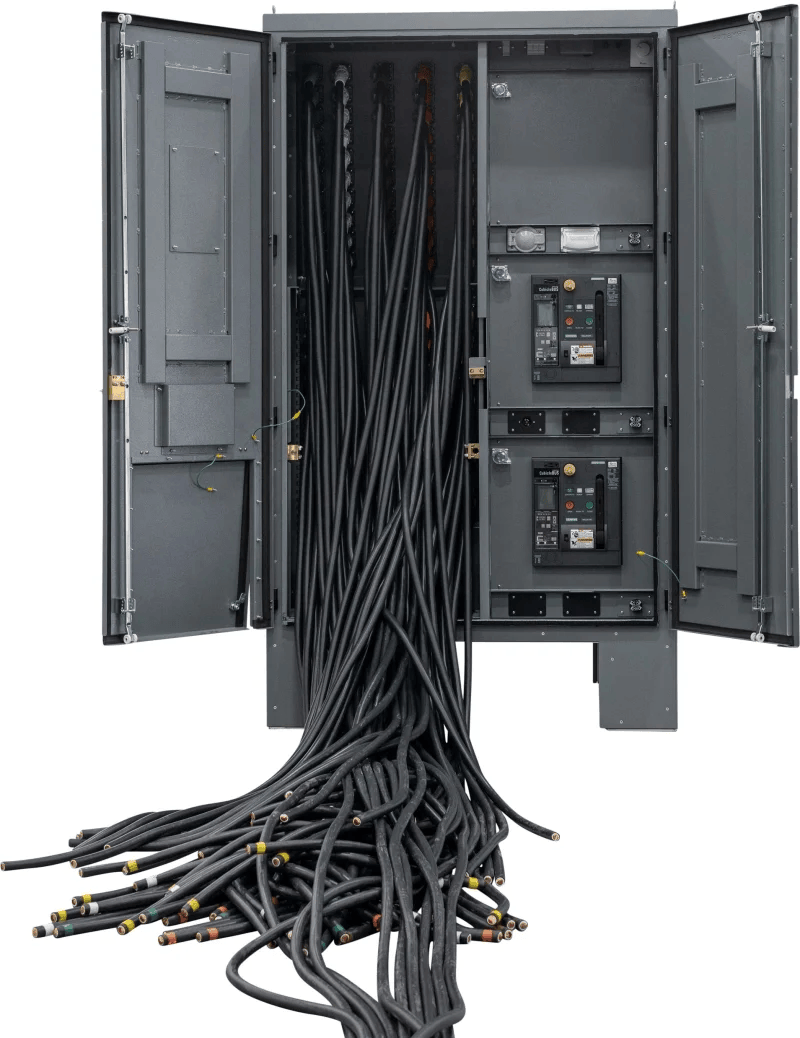

Provides a safe, efficient, and NEC-compliant way to connect both a portable generator and a load bank simultaneously.
The Dual-Purpose Docking Station provides a safe, efficient, and NEC-compliant way to connect both a portable generator and a load bank simultaneously. By eliminating the need for hardwiring into the main breaker, it saves time and money during generator service, maintenance, and testing.

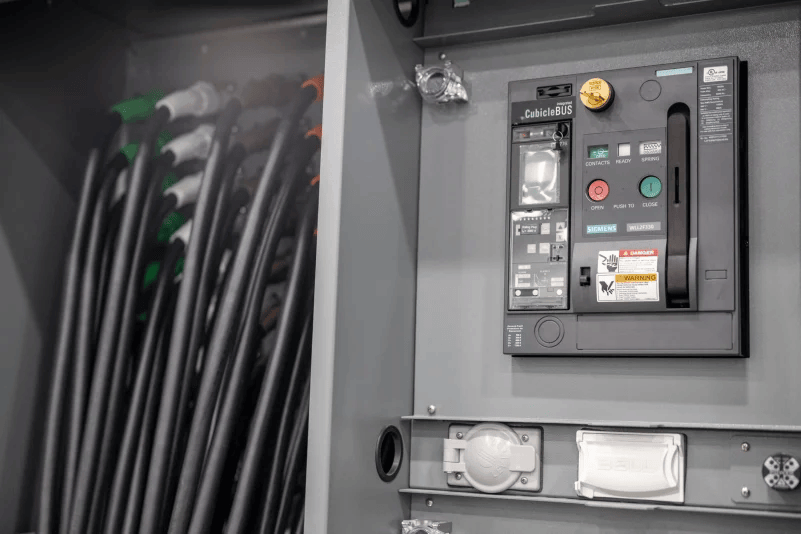

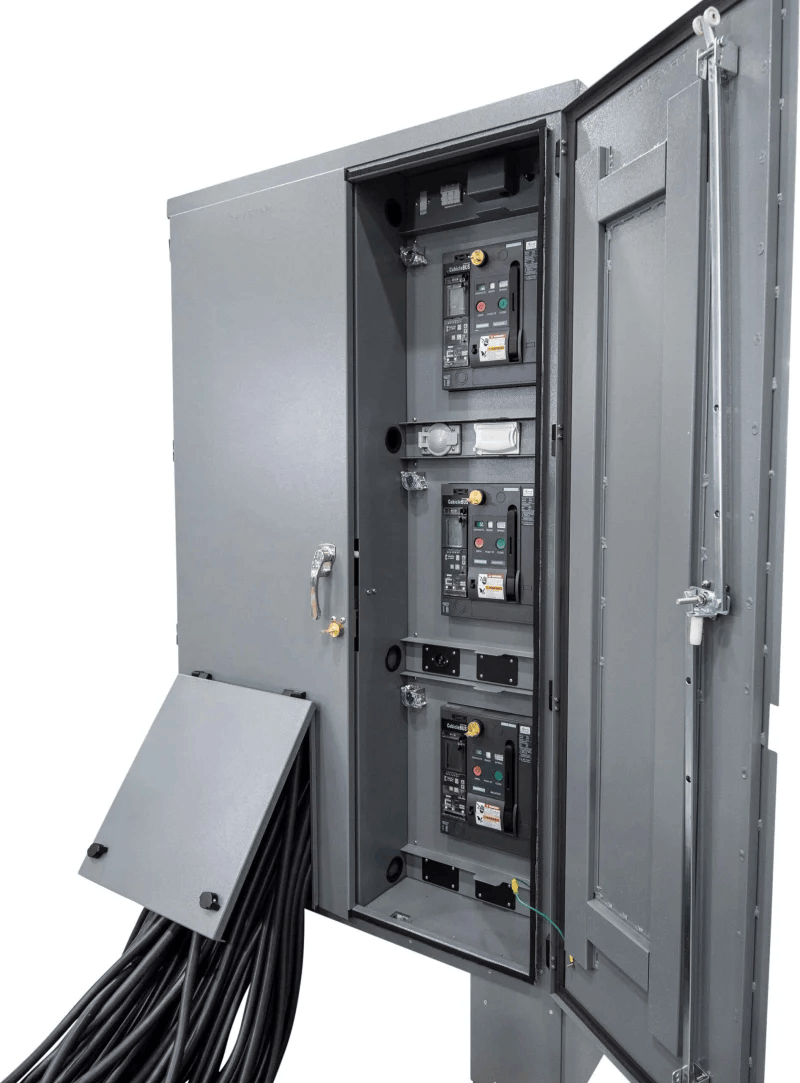

Equipped with the industry-standard Kirk Key interlock system, the station ensures safe and seamless power transfer between permanent and portable generators. Available in multiple enclosure options—wall-mount, flush-mount, and pad-mount—it integrates easily into new or existing infrastructure.
Engineered for resiliency and reliability, the Dual-Purpose Docking Station supports both emergency backup power and routine generator testing. Dedicated load bank connections allow for regular testing without putting unnecessary wear on mechanical components, keeping permanent generators ready to perform at a moment’s notice.
Highly customizable with optional features, add-ons, custom colors, and UV-printed graphics, the Dual-Purpose Docking Station is trusted for mission-critical facilities, disaster response, mobile medical sites, and large-scale events. Built for rugged, repetitive use, it ensures fast, safe, and uninterrupted operations, even as grid instability and extreme weather events become more common.
Specifications
- Electrical:
Ampacity: 100A – 5,000A
Frequency: 60Hz (50Hz optional)
Voltages: 120/240V, 120/240V Delta, 208Y/120V, 480V, 480Y/277V, 600V Interrupt Rating: 65kAIC, 100kAIC
Breakers: 3-Pole, 4-Pole, Single Phase - Mechanical:
Enclosure Types: NEMA 3R (powder-coated aluminum), NEMA 4X (304 or 316 stainless steel)
Busbar: Silver-plated copper, Tin-plated copper (for wastewater facilities) Dimensions (H × W × D):
– Dual Padmount: 84” × 96.5” × 43”
– Deluxe Padmount: 90” × 78.5” × 43”
– Padmount Extra Depth: 84” × 48” × 61”
– Padmount: 84” × 48” × 43”
– Large Wall-Mount: 60” × 48” × 19.5”
– Medium Wall-Mount: 54” × 40” × 16.5”
– Small Wall-Mount: 48” × 30” × 16.5” - Environmental:
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Humidity Rating: 5% to 95% relative humidity (non-condensing) - Compliance: UL 50, ETL UL 1008
