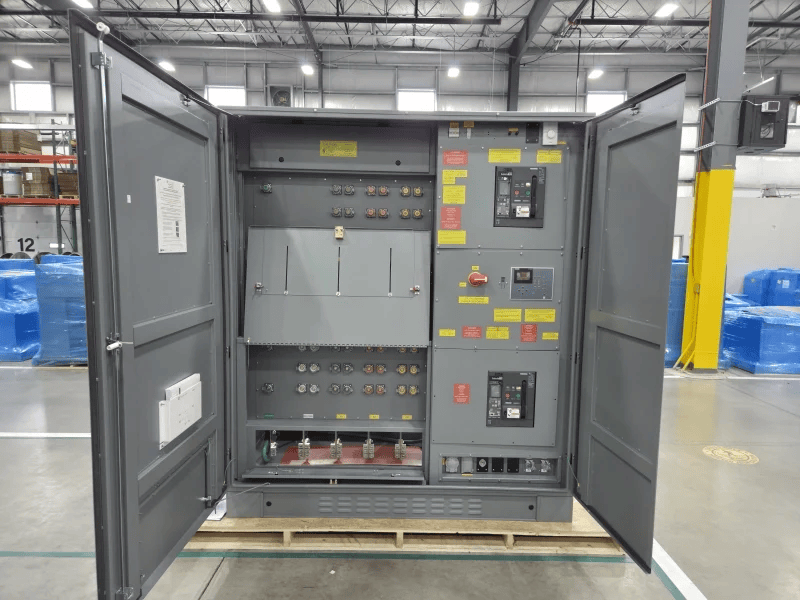

1201-5000 Amp ATS Docking Stations

The High-Amperage Automatic Transfer Switch (HA-ATS) Docking Station delivers seamless, safe, and reliable transitions between utility and backup power for mission-critical facilities. Designed for large-scale applications, it supports up to 5000A with advanced protection, monitoring, and connectivity options. Its patented dual-purpose design integrates ATS and docking in a single unit, reducing complexity while enhancing reliability. With rugged NEMA-rated enclosures, industry-standard camlock connections, and remote monitoring capabilities, the HA-ATS ensures business continuity, operational safety, and fast power restoration in even the most demanding environments.

Specifications

• Electrical: Ampacity Options: 1600A, 2000A, 2500A, 3000A, 3200A, 4000A (Intertek Listed), 5000A (PE-Listed) Voltage Options: 208Y/120V, 400Y/230V, 480Y/277V, 600Y/347V Interrupt Rating: 65kAIC, 100kAIC Frequency: 60Hz / 50Hz
• Mechanical:
  Enclosure Types: Padmount Deluxe, Dual Padmount (ampacity dependent), Padmount Deluxe ED, Dual Padmount ED
  Breaker Options: 3-Pole or 4-Pole
  Controller: LCD touchscreen
• Environmental:
  Operating Temperature: 32°F to 104°F (0°C to 40°C)
  Humidity Rating: 5% to 95% RH (non-condensing)
• Compliance: UL 1008, UL 50 certified
• Dimensions: Refer to dimensional drawings (varies by configuration)
