Integrated Manual Transfer Systems

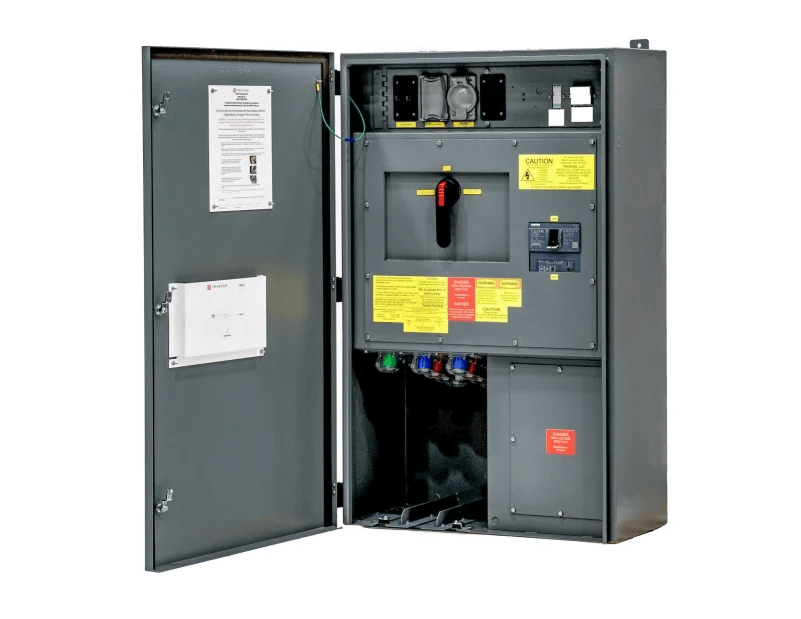

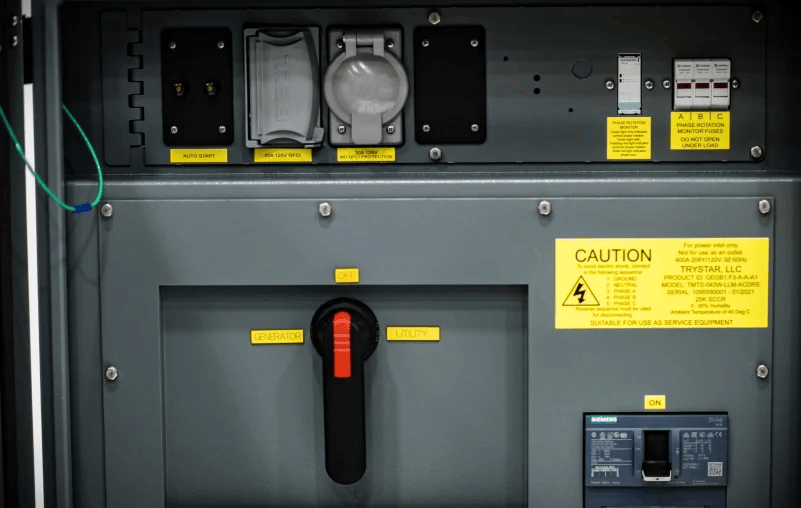

The Integrated Manual Transfer Switch is a comprehensive,all-in-one solution that integrates a manual transfer switch with Camlok connections in a single enclosure. This design simplifies power transfer, reduces installation complexity, and ensures operational safety in mission-critical environments. With amperage options from 100A–1200A and voltages up to 600V, it delivers reliable performance during outages while meeting NEC and UL standards. Rugged NEMA 3R or 4X enclosures, advanced safety features, and flexible customization make it ideal for facilities where manual power switching is preferred, providing reliable continuity during emergencies.

Specifications

• Electrical:
  Ampacity: 100A – 1200A
  Voltage Options: Up to 600V (3- and 4-Pole)
  Frequency: 50 / 60Hz
• Environmental:
  Operating Temperature: 32°F to 104°F (0°C to 40°C)
  Humidity Rating: 5–95% relative humidity (non-condensing)
• Codes / Standards: ETL, UL-1008, UL-50
• Mechanical:
  Enclosure Types:
  – NEMA 3R: Powder-coated aluminum

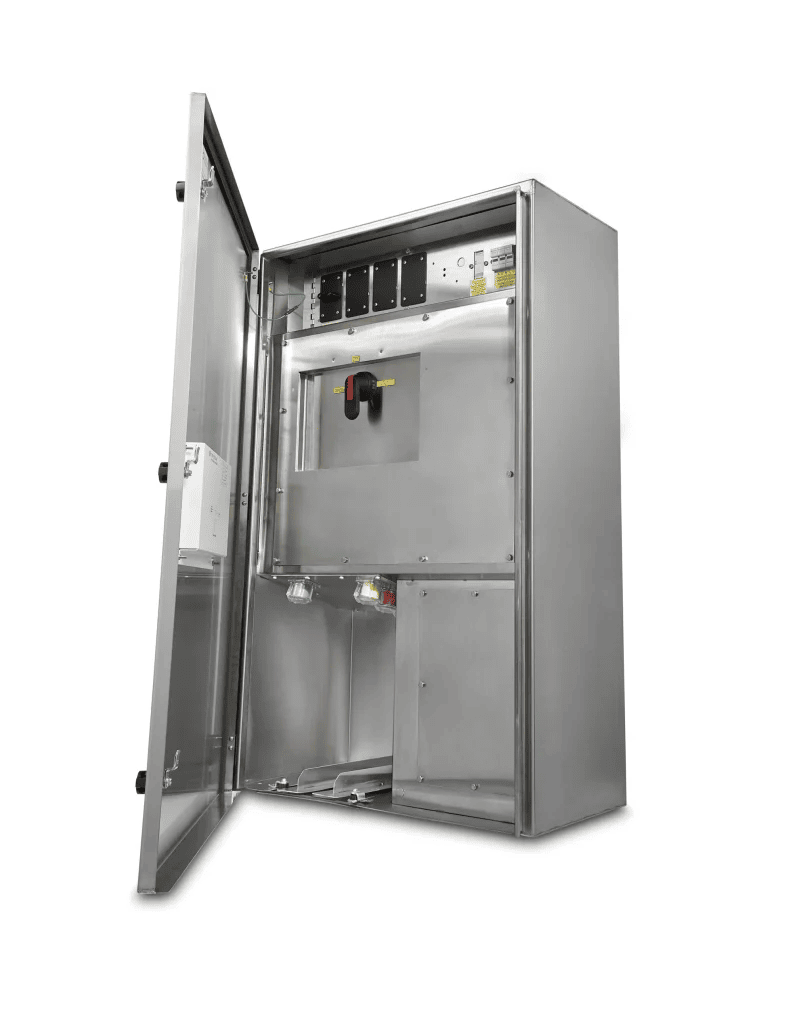

  – NEMA 4X: 304 or 316 stainless steel
  Bus Bar: Silver-plated copper / Tin-plated copper (for wastewater facilities)
• Enclosure Dimensions (H x W x D):
  Dual Padmount: 84” x 96.5” x 43”
  Deluxe Padmount: 90” x 78.5” x 43”
  Padmount Extra Depth: 84” x 48” x 61”
  Padmount: 84” x 48” x 43”
  Large Wall-Mount: 60” x 48” x 19.5”
  Medium Wall-Mount: 54” x 40” x 16.5”
  Small Wall-Mount: 48” x 30” x 16.5”
