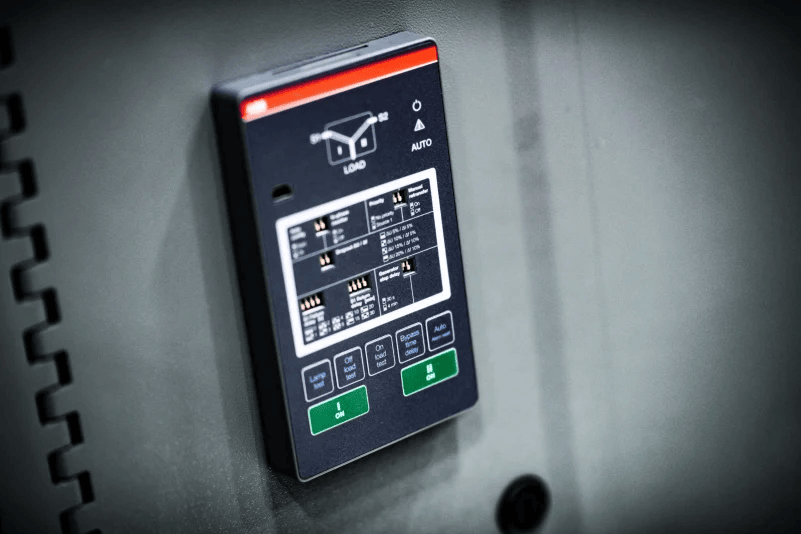

100-1200 Amp ATS Docking Stations
Ensures seamless, automatic switching between utility and backup power during outages, minimizing downtime and protecting critical operations.
The Automatic Transfer Switch (ATS) Docking Station ensures seamless, automatic switching between utility and backup power during outages, minimizing downtime and protecting critical operations. Designed for life-safety applications and high-demand facilities, it combines safety, compliance, and cost-effective performance in one integrated system. With UL 1008 certification, tamper-resistant features, and flexible configurations up to 1200A, the ATS Docking Station is built for reliable operation in hospitals, emergency centers, commercial sites, and industrial facilities. Rugged construction and scalable options make it a trusted solution for uninterrupted power.
Specifications
- Electrical: Voltage: Up to 600Y/347V @ 60Hz Ampacity: Up to 1200A Interrupting Capacity: 65kAIC Breaker Options: 3- or 4-Pole; 100% ground-rated conductor option; ETUs with LSIG (long, short, instantaneous, ground) protection; communications capability
- Configurations: Available in single-purpose and dual-purpose docking station designs Integrated breaker isolation and overcurrent protection Service Entrance Rated (SER) options available Breaker-less configuration available for systems with external protection
- Connections: Industry-standard 16 Series camlock connections with patented flip-lid covers
- Safety & Security: Patented tamper-resistant rake system prevents cable theft and unauthorized disconnection Fully compliant with UL 1008, NEC 700.3(F) NEC 702.12(C) compliant with safety interlock door adder
- Structural Ratings: IBC seismic certification Wind ratings up to 180 MPH for wall-mount enclosures
- Enclosures: NEMA 3R or NEMA 4X, UL 50 listed Material options: mild steel, aluminum, or 304/316 stainless steel for superior environmental protection Mounting options: wall-mount, flush-mount, pedestal (leg kit), or pad-mount
- Accessories: 20+ options including:
Phase rotation monitor,
Kirk Key mechanical interlocks,
SCADA port,
2- or 3-wire auto-start connections,
thermostat & strip heater,
shore power connections (30A & 20A receptacles),
utility indicator light,
load shed receptacle
