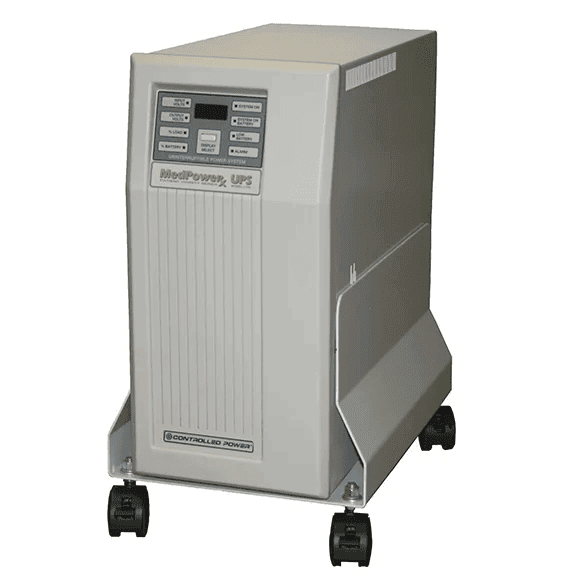

MedPoweRx LT/M UPS
A single-phase, UL 60601-1 listed power protection system specifically designed for patient vicinity medical equipment such as fluoroscopy, ultrasound, mammography, patient monitors, and dialysis machines.
The MedPoweRx LT/M UPS (700VA – 2.1kVA) Medical Grade is a single-phase, UL 60601-1 listed power protection system specifically designed for patient vicinity medical equipment such as fluoroscopy, ultrasound, mammography, patient monitors, and dialysis machines. It delivers seamless, no-break power while regulating voltage to ±3%, filtering harmonics, and eliminating line and ground noise. With NFPA 99-compliant leakage current levels, it ensures patient safety while protecting sensitive devices. A medical-grade isolation transformer and optional extended battery runtimes provide reliable power during outages. Compact, portable, and purpose-built, the LT/M extends equipment life and ensures continuous, safe operation in critical care environments.
Specifications
- Input Operating Voltage: 120VAC
- Input Operating Voltage Range: +10%, -30% typical, load-dependent, without battery usage
- Input Current THD: < 3%
- Leakage Current to Ground: < 300μA
- Output Voltage Regulation: ±3%
- Load Regulation: Typically better than ±3%
- Overload Capability: 125% for 10 minutes
- Surge Capability: 150% of rated output
- Operating Temperature: 0°C to 40°C
- Common Mode Noise Attenuation: 120 dB
- Transverse Mode (Line) Noise Attenuation: 70 dB
- Spike Attenuation: 3000:1
- Crest Factor: 3.5:1
- Size Range: 700VA – 2.1kVA
