ChargePak Portable Battery Testing System
A fully integrated solution designed to simplify, accelerate, and document NERC PRC-005 and IEEE 450-compliant substation battery testing.

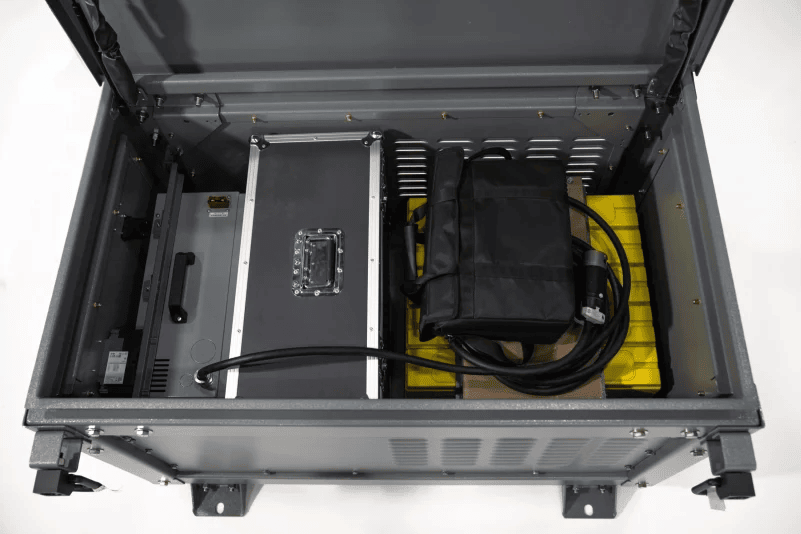

The Trystar ChargePak Portable Battery Testing System (BTS) is a fully integrated solution designed to simplify, accelerate, and document NERC PRC-005 and IEEE 450-compliant substation battery testing. Combining a portable battery charger, load bank, a bank of 125Vdc-50AH batteries and an integrated cabling system, ChargePak eliminates manual setup and battery movement. Its plug-and-play design minimizes human error, while robust VRLA lead-acid construction ensures durability in harsh conditions. Built for reliability, accuracy, and safety, ChargePak streamlines maintenance, reduces downtime, and ensures full regulatory compliance.
Specifications
- Battery Type: Preassembled 125Vdc-50AH battery with VRLA (Valve Regulated Lead Acid) pure lead plates
- Function: Integrated battery charger, load bank, and cabling system for portable battery testing
- Cabling: DC cables: 50 ft. extra-flexible, reel mounted; AC cables: cleat mounted to load bank and charger
- Connectors: Keyed plug-and-play connectors ensure proper orientation and prevent misconnection
- Battery Charger: Featherweight charger for service and station batteries; usable as a spare charger
- Enclosure Rating: NEMA 3R outdoor-rated protective housing
- Battery Charger Alarm Signals: Battery Test Failure, Low DC Voltage, Rectifier Fail, High DC Voltage, High DC Voltage Shutdown, Fan Failure
- Battery Charger Warnings: AC Fail Alarm (power failure)
- Dimensions (L × W × H): 63.31” × 35.72” × 24.75”
- Transport Weight: 900 lbs
- Operating Temperature: -4°F to 113°F
- Storage Temperature: 60°F to 72°F
- Humidity Rating: Up to 95% relative humidity (non-condensing)
- Pollution Degree: 2
- Codes & Standards: NERC PRC-005 / IEEE 450
- Input Voltage: 120V, 208V, 230V, 240V single-phase, 50–60 Hz
- Output Voltage: 24V, 48V, 125V, 250V, 380V, 480V DC / <5%
- Power Factor: 0.99
- Efficiency: 92%
- Total Harmonic Distortion (THD): ±0.5% @ +10/-12% input voltage, ±5% frequency, 0–100% load
- Static Load Regulation: ≤1% from 10–90% on resistive load
- Dynamic Load Regulation: <100mV @ 136Vdc and 30mV @ 27Vdc and 56Vdc
- Output Ripple: Soft start; current limit adjustable from 5–100% of rated value; AC and DC output breaker
- Surge Suppression: Installed on both input and output circuits
