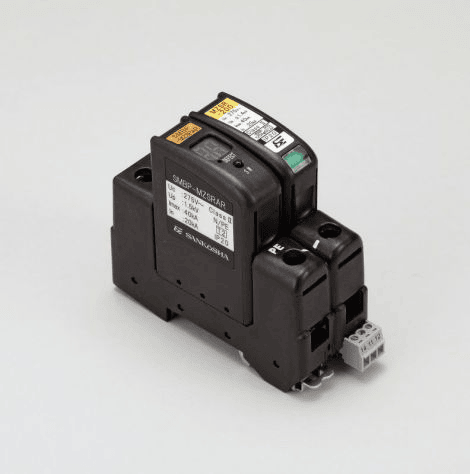

SMBP-MZSR200JK1AR

The SMBP-MZSR200JK1AR is a smart surge protective device (SPD) with a built-in surge counter, designed for the primary side of a leakage breaker in single-phase two-wire systems. Compliant with IEC 61643-11 (Class II) and RoHS, it offers a maximum discharge current of 40 kA (8/20 µs), a nominal discharge current of 20 kA and a voltage protection level of 1.4 kV or less per phase (1.5 kV N-PE), with a maximum continuous operating voltage of 275 V AC. It measures and displays lightning surge current and count, shows a replacement recommendation, and includes a deterioration indicator with a warning contact output. Its plug-in, 35 mm DIN rail design simplifies installation and maintenance in switchboards, distribution boards and control equipment power circuits.

Conforming standards

• IEC 61643-11 compliant
• RoHS compliant

Features

• This products use for primary side of a leakage breaker in single-phase two-wire system
• Maximum discharge current up to 40kA (induction light waveform 8/20µs)
• Lightning surge current measurement, Replacement recommendation display function
• Lightning surge current count display function
• Plug-in type
• Deterioration display function (warning contact output terminal)
• DIN rail mountable (35mm)

Applications

• Low voltage power supply circuits in switchboards and distribution boards (AC 100V/200V, 400V)
• Power supply circuits in control equipment (AC 100V/200V, 400V)

Characteristics

Item	Measurement conditions	SMBP-MZSR200JK1AR
Maximum continuous operating voltage (50/60Hz)(Uc)	–	AC275V
Maximum discharge current (Imax)	8/20µs	40kA
Norminal discharge current (In)	8/20µs	20kA
Voltage protection level (Up)	Based on IEC	1.4kV or less (each phase) 1.5kV or less (N-PE)
