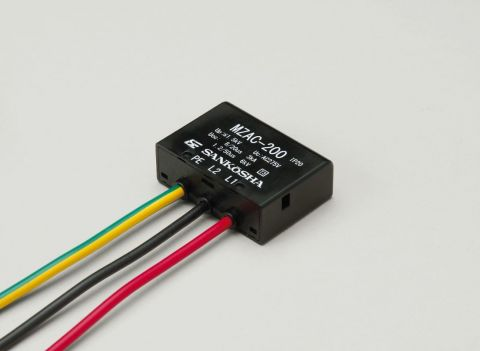

MZAC-200

The MZAC-200 is a compact IEC Class III surge protective device (SPD) designed for the secondary side of a leakage breaker in single-phase two-wire systems. Compliant with IEC 61643-11 and RoHS, it offers an open circuit voltage of 6 kV (1.2/50 µs), a voltage protection level of 1.5 kV or less and a maximum continuous operating voltage of 275 V AC. It includes a deterioration indicator and a built-in isolation function that prevents overheating if the device degrades. Its space-saving design makes it ideal for installation inside equipment and panels.

Conforming standards

• IEC 61643-11 compliant
• RoHS compliant

Features

• This products use for secondary side of e leakage breaker in single-phase two-wire system
• Space saving design to put inside devices
• Open circuit voltage 6kV (1.2/50µs)
• Deterioration display function
• Built-in isolation function prevents overheating in the event of device deterioration

Application

• Built-in devices, panels

Characteristics
